Product Overview

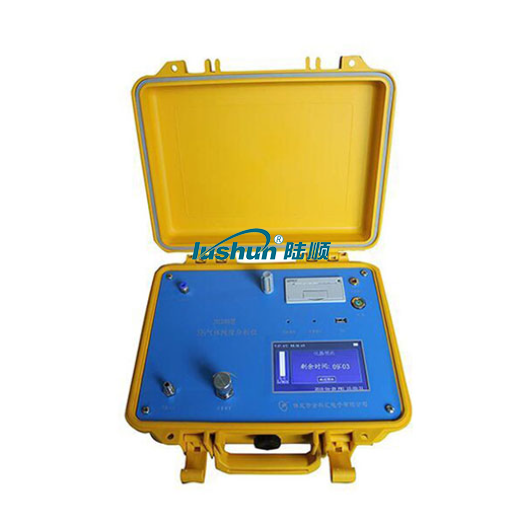

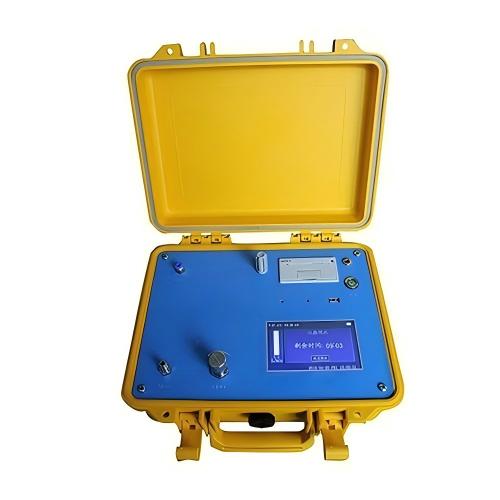

Model JKCD80 SF6 Gas Purity Analyzer (hereinafter referred to as JKCD80) is an intelligent measuring instrument newly developed by our company. This product adopts a color high-brightness LCD touch screen as the human-machine interface; the full Chinese interface ensures easy operation and real-time display of various data. A high-precision, fast-response full touch screen serves as the human-machine input, enabling free switching between multiple functions. Equipped with a built-in large-capacity rechargeable lithium battery pack, it provides an ultra-long standby time. It is configured with a standard USB interface, allowing historical data to be exported to a USB flash drive via this interface.
Model JKCD80 SF6 Gas Purity Analyzer adopts the most advanced micro thermal conductivity sensor with temperature compensation, providing users with a simple on-site SF6 purity detection method. It is mainly used to measure the SF6 gas purity (percentage content) in SF6 cylinders and equipment such as SF6 switches, and can also be applied in scenarios with several background gases (special requirements need to be specified).
Technical Features and Parameters
Technical Features
Portable design for lighter weight, easy carrying and operation.
A long-life micro thermal conductivity sensor with temperature compensation is adopted.
It is equipped with an imported electronic mass flow sensor inside, ensuring accurate flow measurement.
It adopts a large-capacity design and can store up to 100 sets of test data at most.
A 5-inch color touch screen directly displays data, which is intuitive and easy to operate.
Real-time data curve tracking, with clear and intuitive trends of purity percentage changes.
Equipped with a USB 2.0 interface, historical data can be exported to a USB flash drive via the interface.
Equipped with a built-in 4400mAh rechargeable lithium battery, it can work continuously for 10 hours on a single full charge.
Technical Parameters
1)Measuring Range: 0–100% (SF6 Percentage Content)
2)Measurement Accuracy: ±0.1℃ (within the range of 90%–100%)
3)Resolution: 0.01%
4)Sampling Flow Rate: 0.5–0.8 L/min
5)Response Time: 15 s (90% response rate)
6) Sampling System: Built-in pressure regulator valve, filter, and electronic flowmeter
7)Display Mode: Color Touch Screen Display, Full Chinese Interface, Backlit
8)Output Interface: Compliant with USB 2.0 Specification
9)Power Supply: Built-in rechargeable lithium battery (with charging protection device), enabling continuous operation for 8 hours.
10)Dimensions: 320mm×270 mm×140 mm
11)Operating Temperature: -40℃ ~ +80℃
VRP Series Varnish Removal Oil Purifier
Application
Used in gas and steam turbine, compressor, to remove dissolved and suspended soft pollutants in oil products, sludge and other harmful substances. Avoid turbine failures and expensive oil changes due to paint film problems. When the film is formed, the loss of production is very high. The initial formation of the film is known as a soft pollutant, caused by hot spots in the system, such as bearings, pumps, and high flow on-line filtration. Recent studies have found that the existence of soft pollutants can be divided into dissolved state and suspended state, by removing these soft oxides can avoid the production of paint film. Once the film forms, it will clog valves, filters and other small links, and the life of the oil will be significantly reduced.
The formation of cleaning film will cause the following adverse consequences: valve adhesion, loss of control, resulting in unit failure or startup failure; Filter plugging, limiting oil flow, resulting in oil temperature rise and wear increase; Heat exchange failure, oil temperature rise; Sandpaper surface, increase component wear; Forming paint on the bearing, limiting flow, increasing wear and temperature; Frequent oil changes and system flushes. When the soft pollutants are dissolved in the oil, typically when the oil temperature is above 40℃, they cannot be removed by ordinary mechanical filtration or electrostatic filtration, and these soft pollutants show natural magnetism. For polar absorption, the cooler metal surface "cold spot", i.e. the valve and cooler. When the temperature of the oil is lowered, the thermal stability of the soft pollutants is less than that of the oil, so they are more likely to bake hard on hot surfaces, such as axial shafts.
VRP paint film cleaner. It achieves revolutionary and efficient removal of soft pollutants (dissolved and suspended) from oil products, including gas and steam turbines and compressors under high temperature operation. The warm oil is pumped from the lowest point at the bottom of the tank to the VRP paint film purifier by the equipment's own transfer pump. After cooling treatment (using the thermal stability of the paint film is worse than that of oil), the paint film, particulate matter and moisture are removed by the filter element with wood fiber as the raw material (no need to use ion-exchange resin filter material, greatly saving the cost of use).
Features:
● Increase system reliability and stability. ● No more shutdowns and startup failures caused by paint film.
● No longer need to clean the tank and system flushing. ● Increase jacking oil pressure, more stable bearing temperature.
● Improve the life of oil products, blood additives and system components, such as bearings, valves, seals, etc.
● Great savings can be achieved by avoiding turbine failure and extending the life of oil products. Features:
● Increase system reliability and stability. ● No more shutdowns and startup failures caused by paint film.
● No longer need to clean the tank and system flushing. ● Increase jacking oil pressure, more stable bearing temperature.
● Improve the life of oil products, blood additives and system components, such as bearings, valves, seals, etc.
● Great savings can be achieved by avoiding turbine failure and extending the life of oil products.
Technical Specification
|
Model |
VRP-10 |
|
Flow |
10L/min |
|
Working Pressure |
≤0.5Mpa |
|
Total Power |
5.55KW |
|
Power Supply |
AC380V/50Hz |
|
Overall Dimension |
1466mm×1126mm×1750mm |
|
Net Weight |
500kg |
|
Particle contamination degree(NAS1638)
|
≤6grade |
|
MPC data |
＜15 |
■Above size and weight of this equipment are for reference only, the specific data shall be subject to its physical object.
