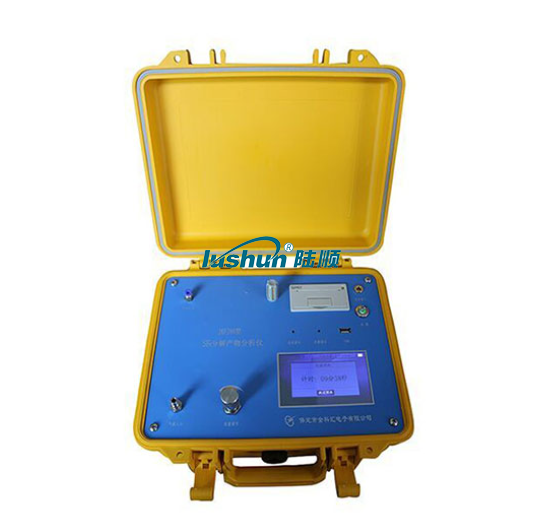

JKFJ80
Lshun
Technical Features and Parameters
Technical Features
Portable design with a lighter weight for easy carrying and operation.
Equipped with an imported electronic mass flow sensor inside for accurate flow measurement.
It adopts a large-capacity design and can store up to 100 sets of test data at maximum.
The 5-inch color touch screen displays data directly, which is intuitive and easy to operate.
It supports two display modes: curve and digital.
It adopts a USB 2.0 interface, and historical data can be exported to a USB flash drive through this interface.
Equipped with a built-in rechargeable lithium battery of 4400mAh, which can work continuously for 10 hours after a full charge.
The measured data supports both automatic and manual saving, and allows free input of measurement numbers.
Built-in functions of multi-point calibration and data compensation.
With zero-point adjustment function
Simultaneous measurement of all decomposition products
Built-in functions of clock display, flow rate indication and battery level indication
No colorimetric tube required; direct measurement via electrochemical sensor
Built-in sampling pump for purging and cleaning the pipeline after measurement.
Technical Parameters
◆Measurement Range:
H2S: 0～100 ppm(μL/L) (Standard Configuration) (It is not advisable to exceed 200 PPM for a long period of time.)
SO2: 0～100 ppm(μL/L) (Standard Configuration) (It is not advisable to exceed 200 PPM for a long period of time.)
CO: 0～500 ppm(μL/L) (Standard Configuration) (It is not advisable to exceed 1000 PPM for a long period of time.)
HF: 0～10 ppm(μL/L) (Optional Configuration) (It is not advisable to exceed 10 PPM for a long period of time.)
◆ Resolution: 0.1 ppm(μL/L)
◆ Measurement Accuracy：
SO2， H2S：5～20 ±1 ppm(μL/L)
20～100 ±3 ppm(μL/L)
CO： 5～50 ±3 ppm(μL/L)
50～500 ±10 ppm(μL/L)
◆ Minimum Detectable Quantity：
SO2： ≤0.1 ppm(μL/L)
H2S： ≤0.1 ppm(μL/L)
CO： ≤1 ppm(μL/L)
◆ Repeatability: <±2%
◆ Measurement Time: Approximately 3 minutes
◆ Sampling:Built-in flow valve, electronic mass flowmeter, 5-meter sampling tube and 2-meter outlet pipe.
◆ Sampling flow rate: 0.15–0.3 L/min
◆ Operating Temperature: -20℃ to +50℃
◆ Sampling: Quick-connect coupling, extended PTFE tube, built-in electronic flowmeter
◆ Operating Power Supply: Built-in rechargeable lithium battery (equipped with charging protection device), capable of continuous operation for 8 hours.
◆ Operating Temperature: -40℃ to 80℃
◆ Display: Large-size true-color touch LCD screen with a resolution of 800×480.
◆ Input Method: High-sensitivity Touch Screen
◆ Output Interface: USB 2.0 Specification
◆ Dimensions: 320(mm)×270(mm)×140(mm)
VRP Series Varnish Removal Oil Purifier
Application
Used in gas and steam turbine, compressor, to remove dissolved and suspended soft pollutants in oil products, sludge and other harmful substances. Avoid turbine failures and expensive oil changes due to paint film problems. When the film is formed, the loss of production is very high. The initial formation of the film is known as a soft pollutant, caused by hot spots in the system, such as bearings, pumps, and high flow on-line filtration. Recent studies have found that the existence of soft pollutants can be divided into dissolved state and suspended state, by removing these soft oxides can avoid the production of paint film. Once the film forms, it will clog valves, filters and other small links, and the life of the oil will be significantly reduced.
The formation of cleaning film will cause the following adverse consequences: valve adhesion, loss of control, resulting in unit failure or startup failure; Filter plugging, limiting oil flow, resulting in oil temperature rise and wear increase; Heat exchange failure, oil temperature rise; Sandpaper surface, increase component wear; Forming paint on the bearing, limiting flow, increasing wear and temperature; Frequent oil changes and system flushes. When the soft pollutants are dissolved in the oil, typically when the oil temperature is above 40℃, they cannot be removed by ordinary mechanical filtration or electrostatic filtration, and these soft pollutants show natural magnetism. For polar absorption, the cooler metal surface "cold spot", i.e. the valve and cooler. When the temperature of the oil is lowered, the thermal stability of the soft pollutants is less than that of the oil, so they are more likely to bake hard on hot surfaces, such as axial shafts.
VRP paint film cleaner. It achieves revolutionary and efficient removal of soft pollutants (dissolved and suspended) from oil products, including gas and steam turbines and compressors under high temperature operation. The warm oil is pumped from the lowest point at the bottom of the tank to the VRP paint film purifier by the equipment's own transfer pump. After cooling treatment (using the thermal stability of the paint film is worse than that of oil), the paint film, particulate matter and moisture are removed by the filter element with wood fiber as the raw material (no need to use ion-exchange resin filter material, greatly saving the cost of use).
Features:
● Increase system reliability and stability. ● No more shutdowns and startup failures caused by paint film.
● No longer need to clean the tank and system flushing. ● Increase jacking oil pressure, more stable bearing temperature.
● Improve the life of oil products, blood additives and system components, such as bearings, valves, seals, etc.
● Great savings can be achieved by avoiding turbine failure and extending the life of oil products. Features:
● Increase system reliability and stability. ● No more shutdowns and startup failures caused by paint film.
● No longer need to clean the tank and system flushing. ● Increase jacking oil pressure, more stable bearing temperature.
● Improve the life of oil products, blood additives and system components, such as bearings, valves, seals, etc.
● Great savings can be achieved by avoiding turbine failure and extending the life of oil products.
Technical Specification
|
Model |
VRP-10 |
|
Flow |
10L/min |
|
Working Pressure |
≤0.5Mpa |
|
Total Power |
5.55KW |
|
Power Supply |
AC380V/50Hz |
|
Overall Dimension |
1466mm×1126mm×1750mm |
|
Net Weight |
500kg |
|
Particle contamination degree(NAS1638)
|
≤6grade |
|
MPC data |
＜15 |
■Above size and weight of this equipment are for reference only, the specific data shall be subject to its physical object.
