JKKS-3
Lshun
Functional Characteristics

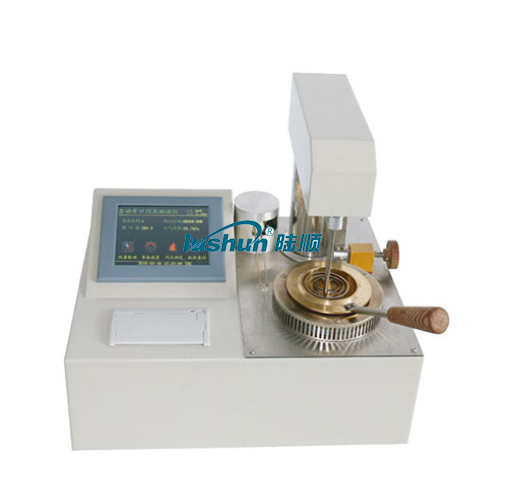

This tester uses a touch screen instead of a keyboard for operation. It is designed to determine the open flash point value of petroleum products.
Adopting advanced foreign technology, it features a large LCD screen with a full-Chinese human-machine interface, full-screen touch buttons for prompt input, enabling convenient and quick operation. The instrument is equipped with open, fuzzy control integrated software and a modular structure, complying with national standards, as well as American and European Union standards.
It is an ideal alternative to imported instruments and is widely used in railway, aviation, electric power, petroleum industries, and scientific research institutions.
● It adopts a new type of high-speed digital signal processor, featuring reliable operation and high precision;
● One host can control multiple test furnaces simultaneously for testing multiple samples, saving test time;
● Testing, lid opening, ignition, alarming, cooling and printing — the entire experimental process is completed automatically;
● Platinum electric heating wire or gas ignition method;
● Automatic atmospheric pressure detection and automatic correction of test results;
● It adopts the newly developed high-power high-frequency switching power supply heating technology with high heating efficiency, and uses an adaptive PID control algorithm to automatically adjust the heating curve;
● It will automatically stop the test and give an alarm when the temperature exceeds the limit;
● A thermal micro-printer ensures more beautiful and faster printing, with an offline printing function;
● Time-stamped historical records with a maximum storage capacity of 255 entries;
● A centennial calendar clock with temperature compensation ensures accurate timekeeping, automatically records the date and time of the test, and can operate for more than 10 years even in a power-off state;
● It adopts a large 320x240 graphic LCD display with a Chinese character interface, providing rich and comprehensive information;
● It adopts a full-screen touch keypad for intuitive and convenient operation;
● Multiple built-in execution standards are available for selection.
Working Principle
Under the conditions specified by the national standards, the instrument fills the sample into the test cup and heats the test cup containing the test oil. The minimum temperature at which the mixture of petroleum vapor generated and the surrounding air flashes when it comes into contact with a flame is taken as the flash point.
The digital signal processor controls the heater according to the collected temperature changes to make the temperature of the test oil rise at a certain rate; the ignition time and flash detection are automatically controlled. When a flash is detected, the system stops data collection, displays the flash temperature, prints and records the result, and stops heating.
Technical Performance
1.Temperature Measurement:
Temperature Measurement Range: -59.9℃-399.9℃
Temperature Control Range: Room Temperature-399.9℃
Repeatability:≤150℃ 3℃
＞150℃ 5℃
Resolution: 0.1℃
Precision: 0.5%
Temperature Sensor: Platinum Resistance Thermometer (PT100)
Flash Sensor: Ion Detection Ring
2.Environmental Temperature: 10—40℃
Relative Humidity: ﹤85%
Power Supply Voltage: AC220V±10%
Power: ﹤500W
3.Heating Rat: Compliant with GB, American and EU standards
4.Overall Dimensions:
440X280X290(mm)
5.Instrument Weight: 14kg
VRP Series Varnish Removal Oil Purifier
Application
Used in gas and steam turbine, compressor, to remove dissolved and suspended soft pollutants in oil products, sludge and other harmful substances. Avoid turbine failures and expensive oil changes due to paint film problems. When the film is formed, the loss of production is very high. The initial formation of the film is known as a soft pollutant, caused by hot spots in the system, such as bearings, pumps, and high flow on-line filtration. Recent studies have found that the existence of soft pollutants can be divided into dissolved state and suspended state, by removing these soft oxides can avoid the production of paint film. Once the film forms, it will clog valves, filters and other small links, and the life of the oil will be significantly reduced.
The formation of cleaning film will cause the following adverse consequences: valve adhesion, loss of control, resulting in unit failure or startup failure; Filter plugging, limiting oil flow, resulting in oil temperature rise and wear increase; Heat exchange failure, oil temperature rise; Sandpaper surface, increase component wear; Forming paint on the bearing, limiting flow, increasing wear and temperature; Frequent oil changes and system flushes. When the soft pollutants are dissolved in the oil, typically when the oil temperature is above 40℃, they cannot be removed by ordinary mechanical filtration or electrostatic filtration, and these soft pollutants show natural magnetism. For polar absorption, the cooler metal surface "cold spot", i.e. the valve and cooler. When the temperature of the oil is lowered, the thermal stability of the soft pollutants is less than that of the oil, so they are more likely to bake hard on hot surfaces, such as axial shafts.
VRP paint film cleaner. It achieves revolutionary and efficient removal of soft pollutants (dissolved and suspended) from oil products, including gas and steam turbines and compressors under high temperature operation. The warm oil is pumped from the lowest point at the bottom of the tank to the VRP paint film purifier by the equipment's own transfer pump. After cooling treatment (using the thermal stability of the paint film is worse than that of oil), the paint film, particulate matter and moisture are removed by the filter element with wood fiber as the raw material (no need to use ion-exchange resin filter material, greatly saving the cost of use).
Features:
● Increase system reliability and stability. ● No more shutdowns and startup failures caused by paint film.
● No longer need to clean the tank and system flushing. ● Increase jacking oil pressure, more stable bearing temperature.
● Improve the life of oil products, blood additives and system components, such as bearings, valves, seals, etc.
● Great savings can be achieved by avoiding turbine failure and extending the life of oil products. Features:
● Increase system reliability and stability. ● No more shutdowns and startup failures caused by paint film.
● No longer need to clean the tank and system flushing. ● Increase jacking oil pressure, more stable bearing temperature.
● Improve the life of oil products, blood additives and system components, such as bearings, valves, seals, etc.
● Great savings can be achieved by avoiding turbine failure and extending the life of oil products.
Technical Specification
|
Model |
VRP-10 |
|
Flow |
10L/min |
|
Working Pressure |
≤0.5Mpa |
|
Total Power |
5.55KW |
|
Power Supply |
AC380V/50Hz |
|
Overall Dimension |
1466mm×1126mm×1750mm |
|
Net Weight |
500kg |
|
Particle contamination degree(NAS1638)
|
≤6grade |
|
MPC data |
＜15 |
■Above size and weight of this equipment are for reference only, the specific data shall be subject to its physical object.
