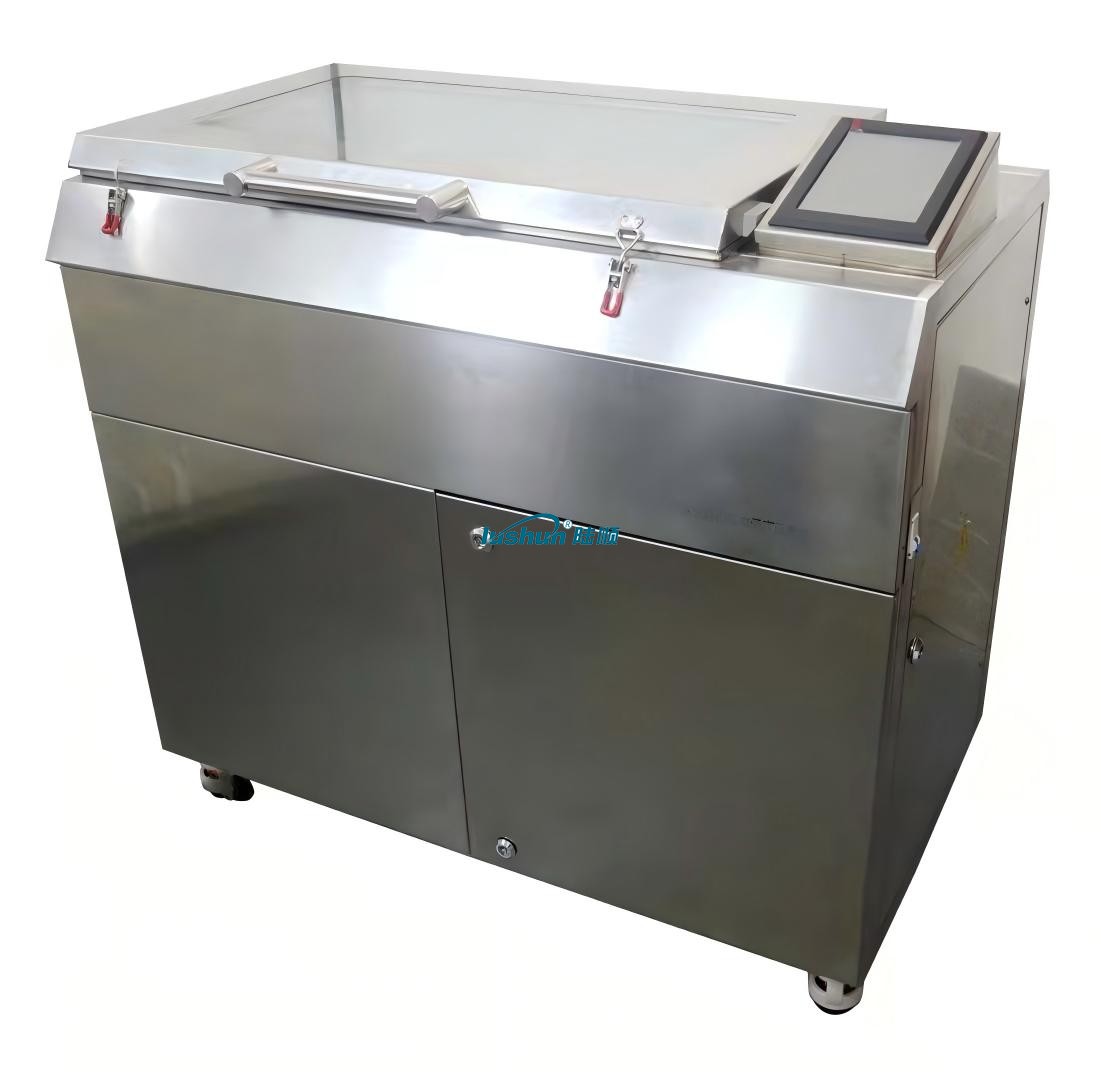

LSQ-1B
Main functions and features:
1. The instrument provides complete cleaning and drying of various laboratory glassware. Rinsing with tap water, cleaning with high-temperature detergent solutions, rinsing with distilled water, and high-temperature drying are all performed fully automatically. After drying, the surface of the glassware meets the “three-no” standard—free of scale, free of detergent residue, and sterile.
2. After warming the municipal water to which the cleaning solution has been added, proceed with cleaning using a combination of various cleaning methods to effectively remove stubborn stains as well as grime from the edges and corners of utensils, ensuring that the utensils meet usage requirements.
3. The instrument features a municipal water filtration function that can remove some large-particle impurities from municipal water, thereby reducing the entry of impurities into the cleaning process.
4. The air filtration device ensures that the hot air used during drying remains pure, preventing contamination of the cleaned utensils.
5. The large-screen display, featuring an 8-inch color touchscreen, provides a user-friendly human-machine interface; operating parameters can be customized. Operating status, washing solution temperature, and drying hot-air temperature are displayed in real time.
6. After the laboratory glassware to be washed is placed into the instrument, it should remain stationary throughout the cleaning process—neither flipped nor moved—ensuring that the items to be washed remain undamaged.
7. The instrument features multiple protection functions, including overcurrent protection, overheating protection, leakage protection, and a pure water shortage alarm, ensuring safer operation.
8. By using polyurethane as the insulation material and employing an insulated mesh technology, we can minimize heat loss and reduce energy consumption to the greatest extent possible.
Main technical specifications:
1. Power supply: 220V, 50Hz
2. Maximum power: 5.0 kW, 22.7 A
3. Drying and heating system power: 5.0 kW
4. Washing system power: 1.0 kW
5. Ambient temperature: 15–45℃
6. Ambient humidity: 50%-60%
7. External dimensions:
1280×765×1020 (L×W×H)
VRP Series Varnish Removal Oil Purifier
Application
Used in gas and steam turbine, compressor, to remove dissolved and suspended soft pollutants in oil products, sludge and other harmful substances. Avoid turbine failures and expensive oil changes due to paint film problems. When the film is formed, the loss of production is very high. The initial formation of the film is known as a soft pollutant, caused by hot spots in the system, such as bearings, pumps, and high flow on-line filtration. Recent studies have found that the existence of soft pollutants can be divided into dissolved state and suspended state, by removing these soft oxides can avoid the production of paint film. Once the film forms, it will clog valves, filters and other small links, and the life of the oil will be significantly reduced.
The formation of cleaning film will cause the following adverse consequences: valve adhesion, loss of control, resulting in unit failure or startup failure; Filter plugging, limiting oil flow, resulting in oil temperature rise and wear increase; Heat exchange failure, oil temperature rise; Sandpaper surface, increase component wear; Forming paint on the bearing, limiting flow, increasing wear and temperature; Frequent oil changes and system flushes. When the soft pollutants are dissolved in the oil, typically when the oil temperature is above 40℃, they cannot be removed by ordinary mechanical filtration or electrostatic filtration, and these soft pollutants show natural magnetism. For polar absorption, the cooler metal surface "cold spot", i.e. the valve and cooler. When the temperature of the oil is lowered, the thermal stability of the soft pollutants is less than that of the oil, so they are more likely to bake hard on hot surfaces, such as axial shafts.
VRP paint film cleaner. It achieves revolutionary and efficient removal of soft pollutants (dissolved and suspended) from oil products, including gas and steam turbines and compressors under high temperature operation. The warm oil is pumped from the lowest point at the bottom of the tank to the VRP paint film purifier by the equipment's own transfer pump. After cooling treatment (using the thermal stability of the paint film is worse than that of oil), the paint film, particulate matter and moisture are removed by the filter element with wood fiber as the raw material (no need to use ion-exchange resin filter material, greatly saving the cost of use).
Features:
● Increase system reliability and stability. ● No more shutdowns and startup failures caused by paint film.
● No longer need to clean the tank and system flushing. ● Increase jacking oil pressure, more stable bearing temperature.
● Improve the life of oil products, blood additives and system components, such as bearings, valves, seals, etc.
● Great savings can be achieved by avoiding turbine failure and extending the life of oil products. Features:
● Increase system reliability and stability. ● No more shutdowns and startup failures caused by paint film.
● No longer need to clean the tank and system flushing. ● Increase jacking oil pressure, more stable bearing temperature.
● Improve the life of oil products, blood additives and system components, such as bearings, valves, seals, etc.
● Great savings can be achieved by avoiding turbine failure and extending the life of oil products.
Technical Specification
|
Model |
VRP-10 |
|
Flow |
10L/min |
|
Working Pressure |
≤0.5Mpa |
|
Total Power |
5.55KW |
|
Power Supply |
AC380V/50Hz |
|
Overall Dimension |
1466mm×1126mm×1750mm |
|
Net Weight |
500kg |
|
Particle contamination degree(NAS1638)
|
≤6grade |
|
MPC data |
＜15 |
■Above size and weight of this equipment are for reference only, the specific data shall be subject to its physical object.
