LS-1
Main functions and features:

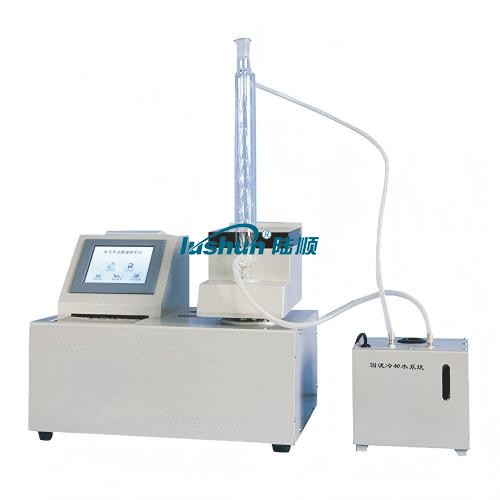

1. The LS-1 Fully Automatic Petroleum Product Backflow Method Acid Value Tester, developed and designed entirely in accordance with the GB/T28552-2012 standard to meet the urgent market demands, represents a domestic first. It is a fully automatic testing instrument capable of accurately determining the acid value of transformer oil. While enhancing work efficiency and testing accuracy, this instrument also minimizes operators’ exposure to samples and reagents, thereby maximizing their personal safety.
2. The extra-large color touch LCD screen is easy to operate via a touch-sensitive LCD display.
3. No manual weighing is required—simply place the sample into the sample cup, and the instrument will automatically perform operations such as sample introduction, heating and reflux, measurement, waste liquid discharge, and display/printing of results.
4. During testing, the instrument automatically subtracts the background values of ethanol and the indicator, ensuring more accurate results. With a single startup, one sample can be tested, making the instrument easy to use and highly efficient. The instrument is equipped with standard acids for instrument calibration and a calibration procedure, allowing users to calibrate both the instrument and the neutralizing solution at any time. This eliminates the drawback of changing concentrations in the neutralizing solution during use, thereby enhancing the reliability of test results.
Main technical specifications:
1. Applicable to the determination of acid value in transformer oil and turbine oil according to GB/T28552-2012. French (BTB French) standard.
2. Test range: 0.001–2 mg KOH/g
3. Accuracy:
Acid value is between <0.1 mg KOH/g and ≤±0.003 mg KOH/g.
Acid value is between 0.1 and 0.3 mg KOH/g, with a tolerance of ≤ ±0.005 mg.
KOH/g
Acid value between 1.000–2.000 mg KOH/g, with a tolerance of ≤ ±0.02 mg KOH/g.
4. Resolution: 0.001 mg KOH/g
5. Applicable temperature: 10℃~45℃
6. Applicable humidity: ≤85% RH
7. Power supply: AC 220V/50Hz
8. Power: 500W
VRP Series Varnish Removal Oil Purifier
Application
Used in gas and steam turbine, compressor, to remove dissolved and suspended soft pollutants in oil products, sludge and other harmful substances. Avoid turbine failures and expensive oil changes due to paint film problems. When the film is formed, the loss of production is very high. The initial formation of the film is known as a soft pollutant, caused by hot spots in the system, such as bearings, pumps, and high flow on-line filtration. Recent studies have found that the existence of soft pollutants can be divided into dissolved state and suspended state, by removing these soft oxides can avoid the production of paint film. Once the film forms, it will clog valves, filters and other small links, and the life of the oil will be significantly reduced.
The formation of cleaning film will cause the following adverse consequences: valve adhesion, loss of control, resulting in unit failure or startup failure; Filter plugging, limiting oil flow, resulting in oil temperature rise and wear increase; Heat exchange failure, oil temperature rise; Sandpaper surface, increase component wear; Forming paint on the bearing, limiting flow, increasing wear and temperature; Frequent oil changes and system flushes. When the soft pollutants are dissolved in the oil, typically when the oil temperature is above 40℃, they cannot be removed by ordinary mechanical filtration or electrostatic filtration, and these soft pollutants show natural magnetism. For polar absorption, the cooler metal surface "cold spot", i.e. the valve and cooler. When the temperature of the oil is lowered, the thermal stability of the soft pollutants is less than that of the oil, so they are more likely to bake hard on hot surfaces, such as axial shafts.
VRP paint film cleaner. It achieves revolutionary and efficient removal of soft pollutants (dissolved and suspended) from oil products, including gas and steam turbines and compressors under high temperature operation. The warm oil is pumped from the lowest point at the bottom of the tank to the VRP paint film purifier by the equipment's own transfer pump. After cooling treatment (using the thermal stability of the paint film is worse than that of oil), the paint film, particulate matter and moisture are removed by the filter element with wood fiber as the raw material (no need to use ion-exchange resin filter material, greatly saving the cost of use).
Features:
● Increase system reliability and stability. ● No more shutdowns and startup failures caused by paint film.
● No longer need to clean the tank and system flushing. ● Increase jacking oil pressure, more stable bearing temperature.
● Improve the life of oil products, blood additives and system components, such as bearings, valves, seals, etc.
● Great savings can be achieved by avoiding turbine failure and extending the life of oil products. Features:
● Increase system reliability and stability. ● No more shutdowns and startup failures caused by paint film.
● No longer need to clean the tank and system flushing. ● Increase jacking oil pressure, more stable bearing temperature.
● Improve the life of oil products, blood additives and system components, such as bearings, valves, seals, etc.
● Great savings can be achieved by avoiding turbine failure and extending the life of oil products.
Technical Specification
|
Model |
VRP-10 |
|
Flow |
10L/min |
|
Working Pressure |
≤0.5Mpa |
|
Total Power |
5.55KW |
|
Power Supply |
AC380V/50Hz |
|
Overall Dimension |
1466mm×1126mm×1750mm |
|
Net Weight |
500kg |
|
Particle contamination degree(NAS1638)
|
≤6grade |
|
MPC data |
＜15 |
■Above size and weight of this equipment are for reference only, the specific data shall be subject to its physical object.
