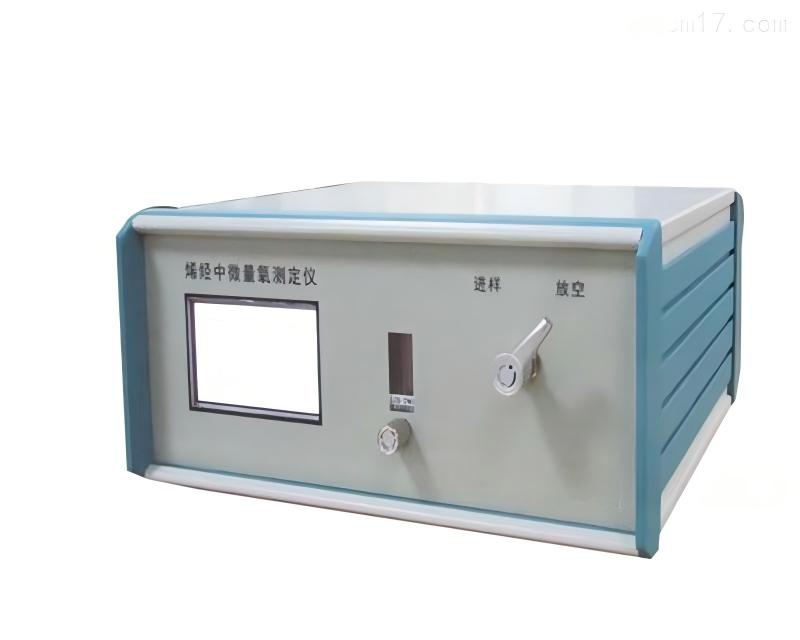

LSWY-1000KJ
This instrument employs isocompositional vaporization technology specifically designed for olefins. It utilizes a metal bath vaporization device to convert liquid olefin samples into a gaseous state, which are then analyzed for oxygen content using an advanced fuel cell sensor.
The sensor is hermetically sealed and maintenance-free, typically offering a service life of three to five years. This unit serves as a next-generation upgrade to older micro-oxygen analyzers.
Thanks to its unique purge sampling flow design and isocompositional conversion technology, the instrument features a short equilibration time, rapid measurement speed, and high accuracy. It offers superior reliability and adaptability compared to traditional models.
GB/T 3396-2002 Determination of Trace Oxygen in Ethylene and Propylene for Industrial Use — Electrochemical Method
Performance Indicators
1. Measurement Range: 0 ～ 20 / 200 / 2000 ppm
2. Measurement Accuracy: 1.5% (Maximum resolution 0.01 ppm)
3. Response Time: 30 seconds to reach 90% of reading
4. Operating Temperature: -5℃ ～ 40℃
5. Gas Flow Rate: 0.5 L/min
6. Operating Pressure: Inlet: -0.5 kg/cm²; Outlet: Vented to atmosphere
7. Detection Limit: Capable of accurately analyzing oxygen content as low as 0.1 ppm
The instrument utilizes a hermetically sealed fuel cell oxygen sensor, which is currently considered one of the most advanced methods for oxygen measurement internationally.
The fuel cell oxygen sensor consists of a highly active oxygen electrode (cathode) and a lead electrode (anode), immersed in a potassium hydroxide (KOH) solution. Oxygen is reduced to hydroxide ions at the cathode, while lead is oxidized at the anode.
Chemical Reactions:
· Cathode: O₂ + 2H₂O + 4e⁻ → 4OH⁻
· Anode: 2Pb + 4OH⁻ → 2Pb(OH)₂ + 4e⁻
The KOH solution is separated from the outside environment by a polymer membrane. Since the sample gas does not directly enter the sensor, the solution and lead electrode do not require periodic cleaning or replacement.Oxygen molecules in the sample gas diffuse through the polymer membrane to the oxygen electrode for electrochemical reaction. The current generated during this reaction is determined by the number of oxygen molecules diffusing to the electrode. Since the diffusion rate is proportional to the oxygen content in the sample gas, the sensor's output signal depends solely on the oxygen concentration and is independent of the total volume of gas passing through the sensor.
VRP Series Varnish Removal Oil Purifier
Application
Used in gas and steam turbine, compressor, to remove dissolved and suspended soft pollutants in oil products, sludge and other harmful substances. Avoid turbine failures and expensive oil changes due to paint film problems. When the film is formed, the loss of production is very high. The initial formation of the film is known as a soft pollutant, caused by hot spots in the system, such as bearings, pumps, and high flow on-line filtration. Recent studies have found that the existence of soft pollutants can be divided into dissolved state and suspended state, by removing these soft oxides can avoid the production of paint film. Once the film forms, it will clog valves, filters and other small links, and the life of the oil will be significantly reduced.
The formation of cleaning film will cause the following adverse consequences: valve adhesion, loss of control, resulting in unit failure or startup failure; Filter plugging, limiting oil flow, resulting in oil temperature rise and wear increase; Heat exchange failure, oil temperature rise; Sandpaper surface, increase component wear; Forming paint on the bearing, limiting flow, increasing wear and temperature; Frequent oil changes and system flushes. When the soft pollutants are dissolved in the oil, typically when the oil temperature is above 40℃, they cannot be removed by ordinary mechanical filtration or electrostatic filtration, and these soft pollutants show natural magnetism. For polar absorption, the cooler metal surface "cold spot", i.e. the valve and cooler. When the temperature of the oil is lowered, the thermal stability of the soft pollutants is less than that of the oil, so they are more likely to bake hard on hot surfaces, such as axial shafts.
VRP paint film cleaner. It achieves revolutionary and efficient removal of soft pollutants (dissolved and suspended) from oil products, including gas and steam turbines and compressors under high temperature operation. The warm oil is pumped from the lowest point at the bottom of the tank to the VRP paint film purifier by the equipment's own transfer pump. After cooling treatment (using the thermal stability of the paint film is worse than that of oil), the paint film, particulate matter and moisture are removed by the filter element with wood fiber as the raw material (no need to use ion-exchange resin filter material, greatly saving the cost of use).
Features:
● Increase system reliability and stability. ● No more shutdowns and startup failures caused by paint film.
● No longer need to clean the tank and system flushing. ● Increase jacking oil pressure, more stable bearing temperature.
● Improve the life of oil products, blood additives and system components, such as bearings, valves, seals, etc.
● Great savings can be achieved by avoiding turbine failure and extending the life of oil products. Features:
● Increase system reliability and stability. ● No more shutdowns and startup failures caused by paint film.
● No longer need to clean the tank and system flushing. ● Increase jacking oil pressure, more stable bearing temperature.
● Improve the life of oil products, blood additives and system components, such as bearings, valves, seals, etc.
● Great savings can be achieved by avoiding turbine failure and extending the life of oil products.
Technical Specification
|
Model |
VRP-10 |
|
Flow |
10L/min |
|
Working Pressure |
≤0.5Mpa |
|
Total Power |
5.55KW |
|
Power Supply |
AC380V/50Hz |
|
Overall Dimension |
1466mm×1126mm×1750mm |
|
Net Weight |
500kg |
|
Particle contamination degree(NAS1638)
|
≤6grade |
|
MPC data |
＜15 |
■Above size and weight of this equipment are for reference only, the specific data shall be subject to its physical object.
