LS-501B,LS-535-4C,LS-504,LS-503,LS-A10,LS-G35A,LS-B,LS-R10,LS-4000A,LS-4000B,LS-4000C,LS-4000D,LS-4000E
Lshun

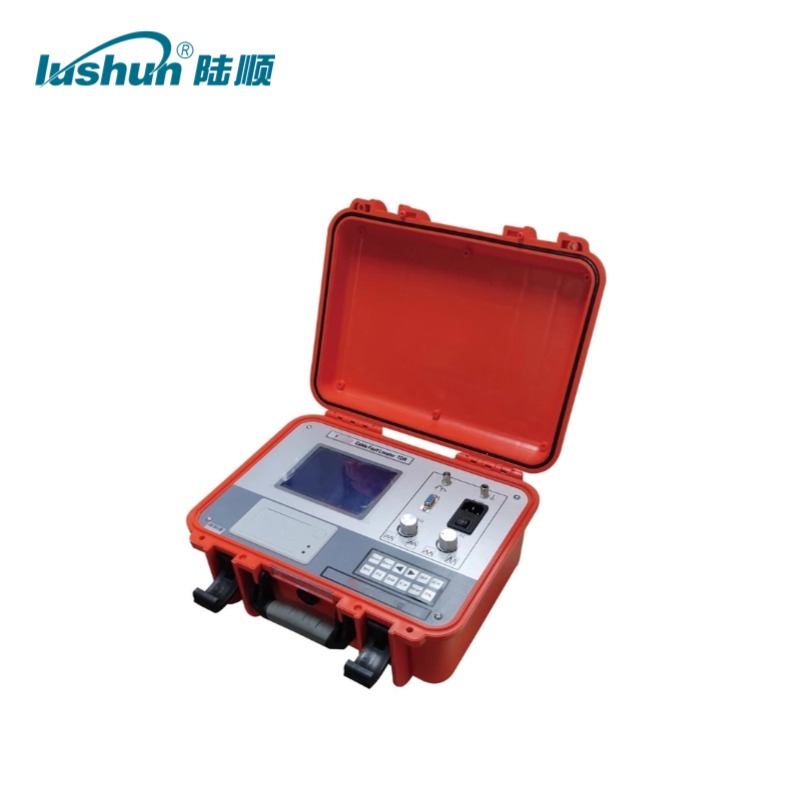

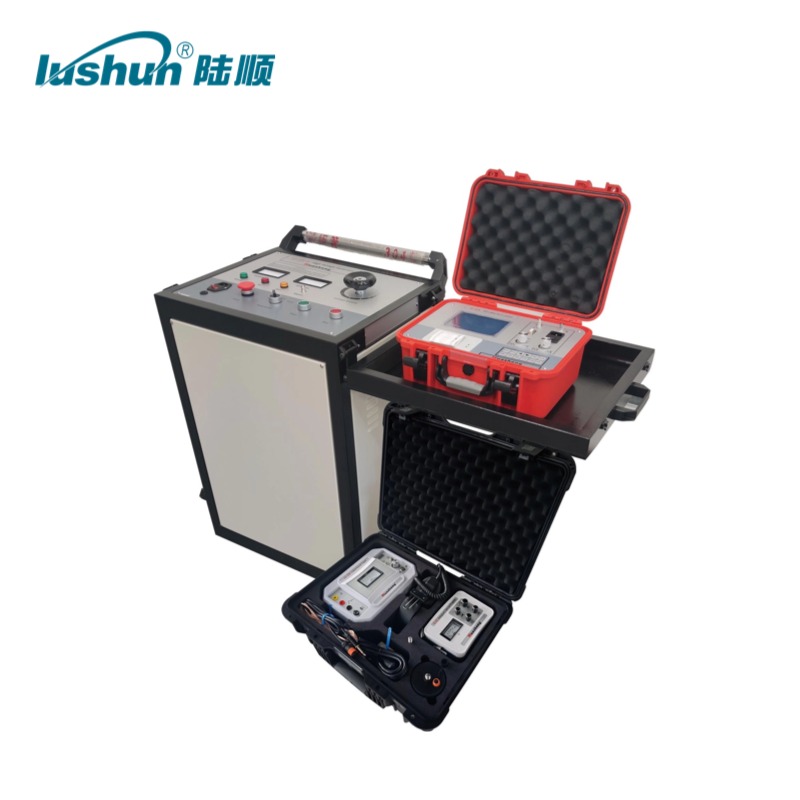

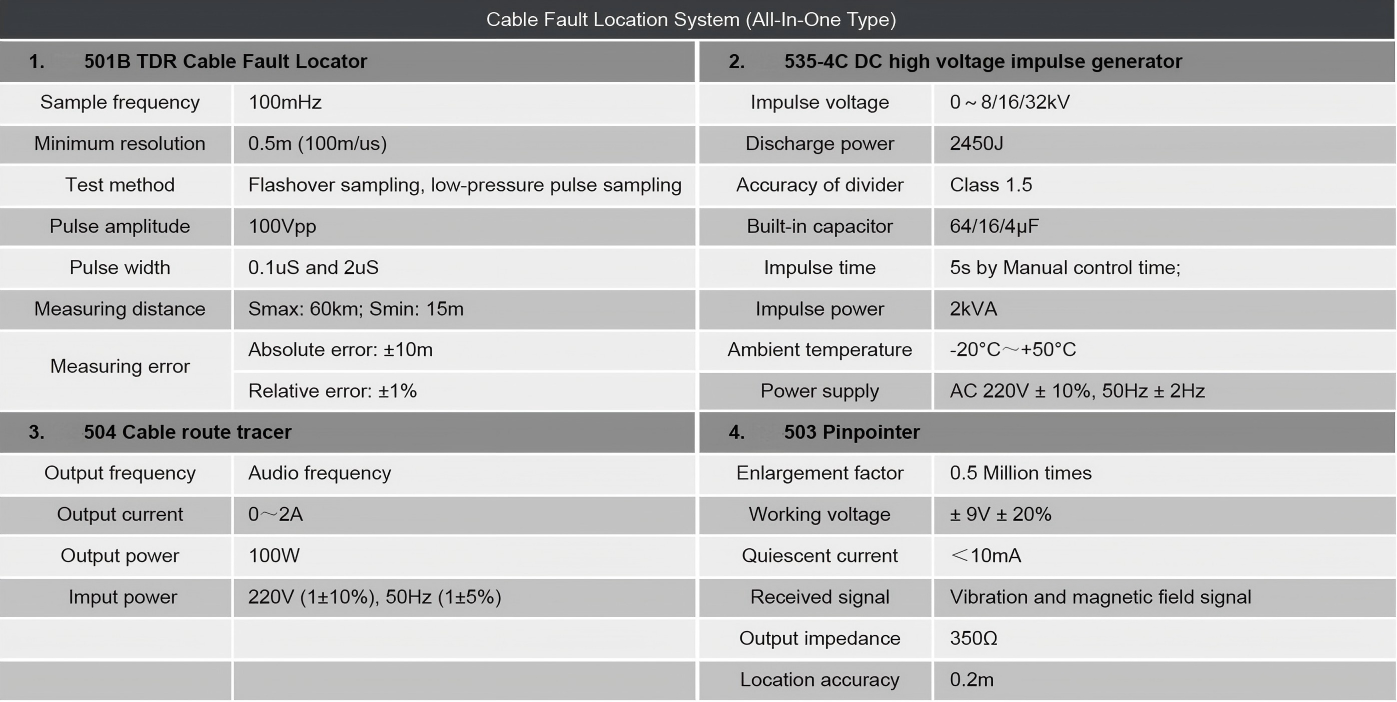

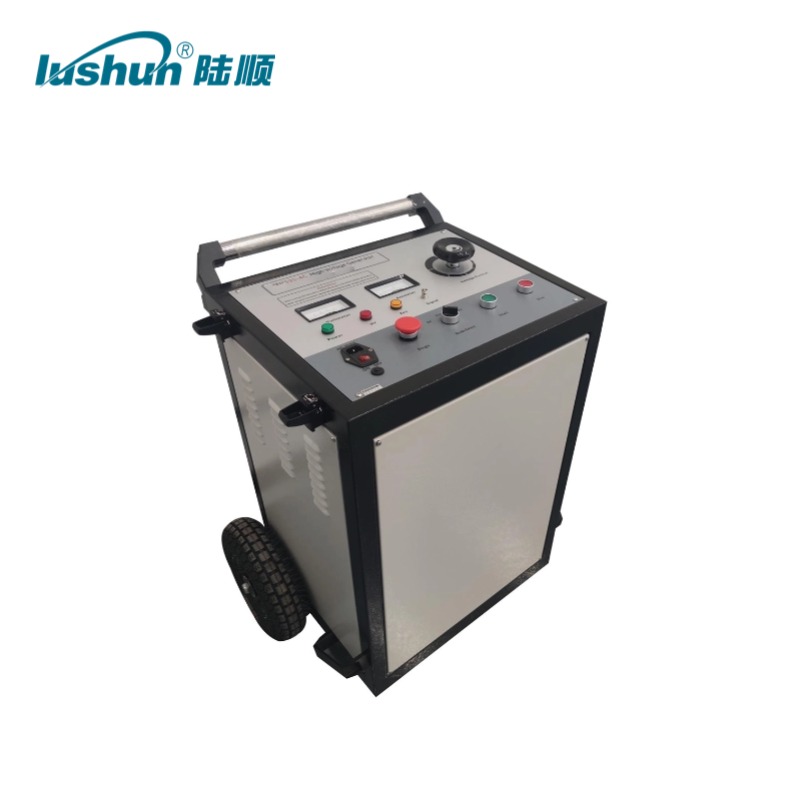

Cable Fault Location System (All-In-One Type)
Cable Fault Location System is designed to provide quick, effective, accurate and safe cable fault loca-tion, thereby reducing system outages and minutes lost.
All in one type, easy to connect and operate.

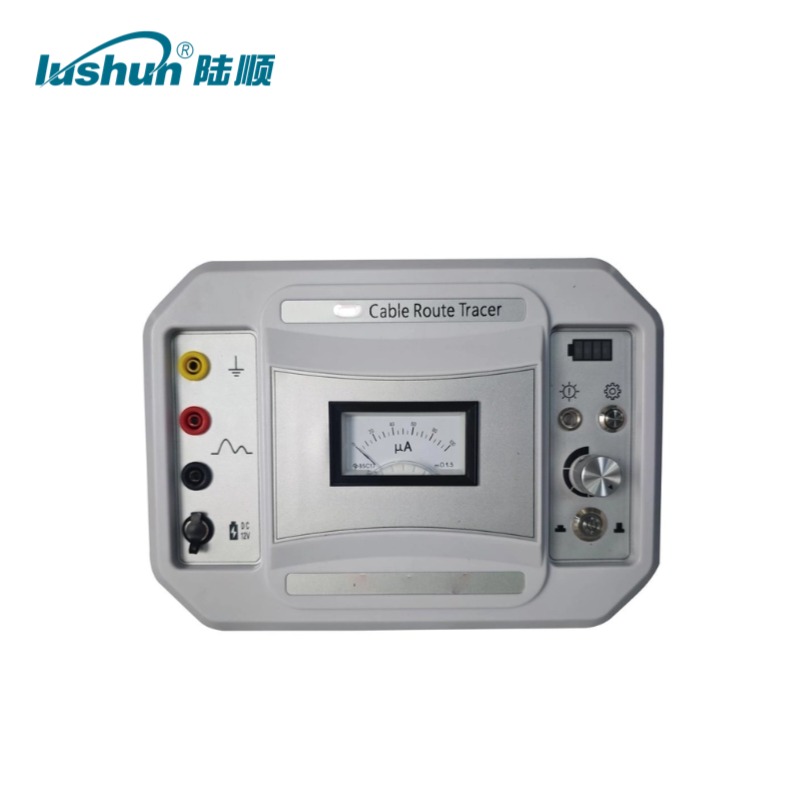

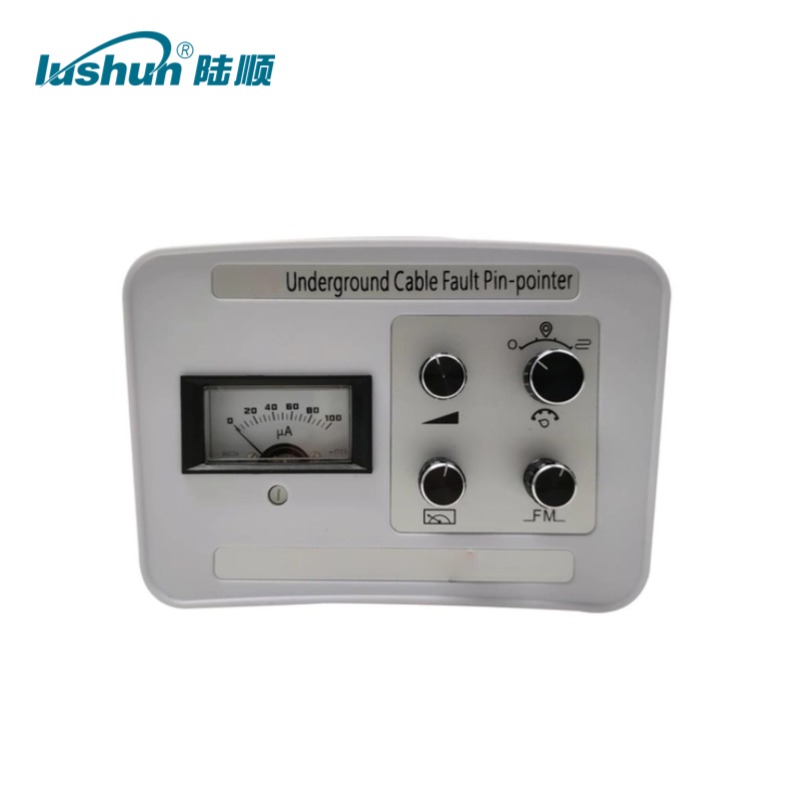

The complete set of equipment consists of cable fault loca-tor, pinpoint tester, generator, cable route tracer.
DC-testing up to 32 kV, Discharge power 2450J

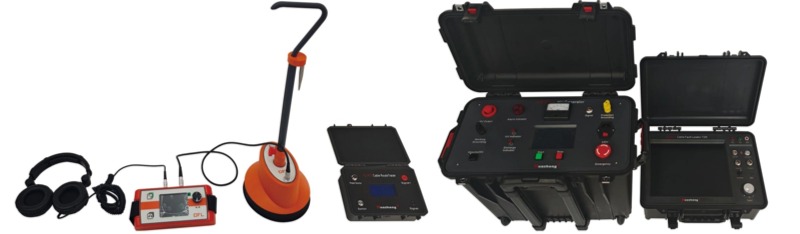

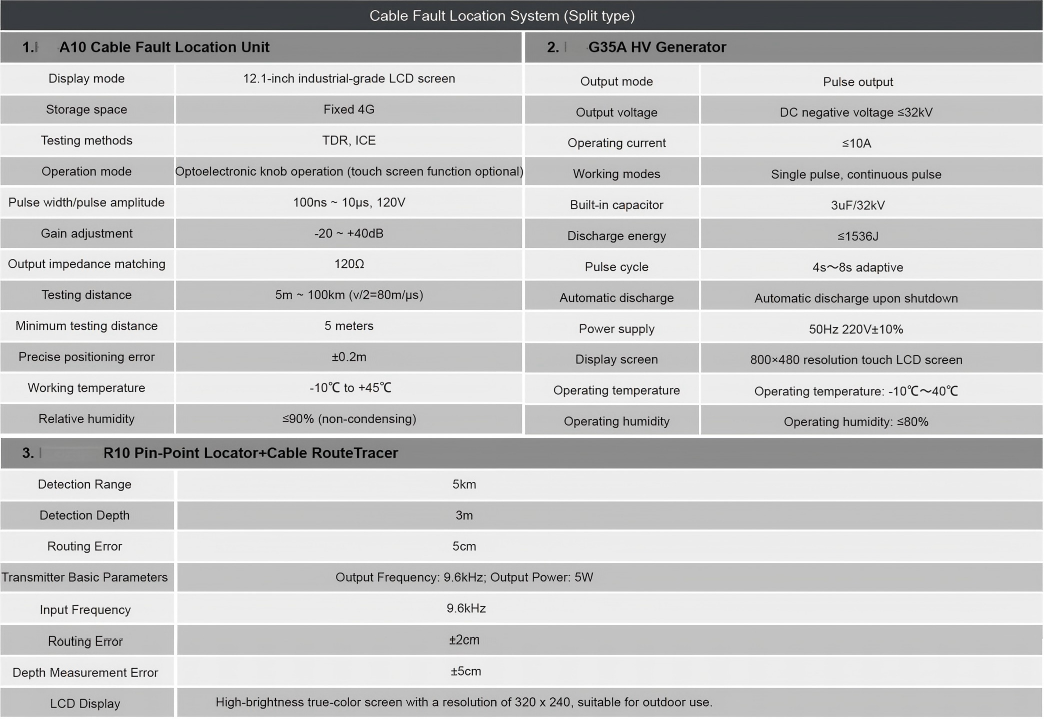

Cable Fault Location System (Split type)
Cable Fault Location System is designed to provide quick, effective, accurate and safe cable fault location, thereby reducing system outages and minutes lost.
Separated type, easy to carry and move.
Including cable fault locator, Pin Pointing tester, Offer Full solution for cable location.
DC-testing up to 35 kV

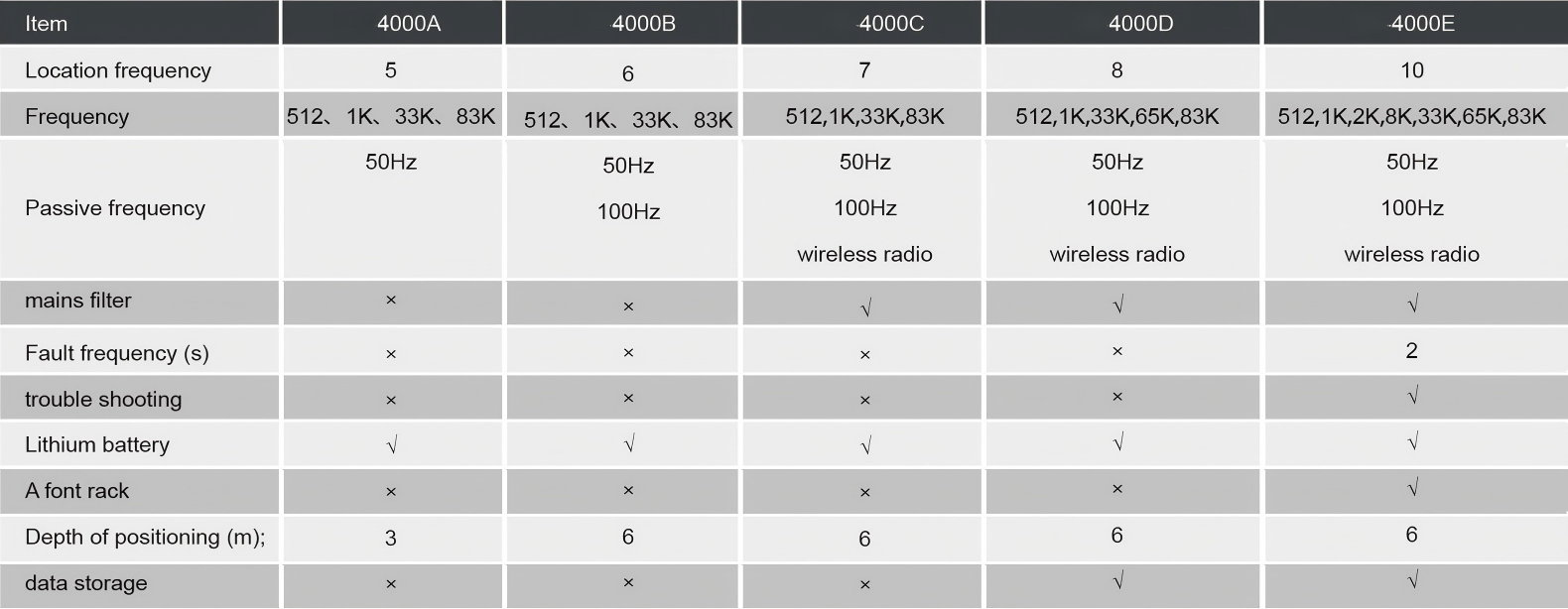

Cable Fault Location System（4000）

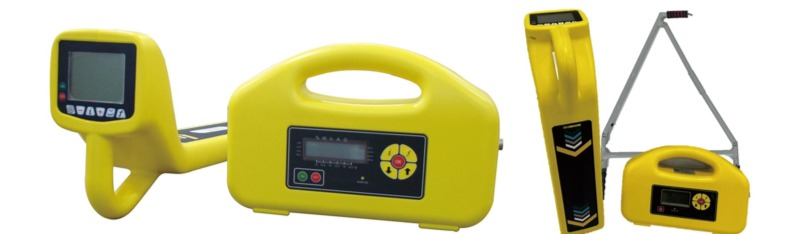

The HZ-4000 underground cable fault detector can accurately locate and measure the buried depth of underground pipelines, cables, and optical cables without excavation, and accurately find the location of the damaged point of the outer anti-corrosion layer of the underground pipeline and the fault point of the buried cable. and is suitable for various underground The detection and inspection of metal pipelines, pipeline management and maintenance, municipal planning and construction, power supply and other departments are the necessary instruments for pipeline maintenance units.
Multiple Functions
1) Transmitter: three connection modes: inductive connection, direct connection and clamp connection; suitable for different occasions.
2) The receiver functions: detecting the position,path, depth and tube current of underground pipes and cables.
3) Left and right positioning arrows indicate the target pipeline position fast and accurately; front and rear arrows and dB value indicates the point and size of the coating damage.
4) Backlight suitable for urgent use in the nighttime.
5) Optional GPS geolocation with the automatic mapping of the pipelines.
6) Optional professional data analysis software with the automatic detection report.
7) Unique feature ofHZ-4000 : locating the breakdown points (pipeline breakdowns refer to the coating damaged points while electric cable breakdowns refer to the outer layer damages.); detecting the insulation damages of underground pipeline and cable.
8) Measuring the current of the pipeline and cable applied by the transmitter.
9) Multimeter function: measure the output voltage, line voltage, line current, impedance and power; Test the cable continuity and insulation quality before and after cable fault finding.
10) External induction clamp: suitable for testing the cable when they cannot be directly applied to the signal of the place.
VRP Series Varnish Removal Oil Purifier
Application
Used in gas and steam turbine, compressor, to remove dissolved and suspended soft pollutants in oil products, sludge and other harmful substances. Avoid turbine failures and expensive oil changes due to paint film problems. When the film is formed, the loss of production is very high. The initial formation of the film is known as a soft pollutant, caused by hot spots in the system, such as bearings, pumps, and high flow on-line filtration. Recent studies have found that the existence of soft pollutants can be divided into dissolved state and suspended state, by removing these soft oxides can avoid the production of paint film. Once the film forms, it will clog valves, filters and other small links, and the life of the oil will be significantly reduced.
The formation of cleaning film will cause the following adverse consequences: valve adhesion, loss of control, resulting in unit failure or startup failure; Filter plugging, limiting oil flow, resulting in oil temperature rise and wear increase; Heat exchange failure, oil temperature rise; Sandpaper surface, increase component wear; Forming paint on the bearing, limiting flow, increasing wear and temperature; Frequent oil changes and system flushes. When the soft pollutants are dissolved in the oil, typically when the oil temperature is above 40℃, they cannot be removed by ordinary mechanical filtration or electrostatic filtration, and these soft pollutants show natural magnetism. For polar absorption, the cooler metal surface "cold spot", i.e. the valve and cooler. When the temperature of the oil is lowered, the thermal stability of the soft pollutants is less than that of the oil, so they are more likely to bake hard on hot surfaces, such as axial shafts.
VRP paint film cleaner. It achieves revolutionary and efficient removal of soft pollutants (dissolved and suspended) from oil products, including gas and steam turbines and compressors under high temperature operation. The warm oil is pumped from the lowest point at the bottom of the tank to the VRP paint film purifier by the equipment's own transfer pump. After cooling treatment (using the thermal stability of the paint film is worse than that of oil), the paint film, particulate matter and moisture are removed by the filter element with wood fiber as the raw material (no need to use ion-exchange resin filter material, greatly saving the cost of use).
Features:
● Increase system reliability and stability. ● No more shutdowns and startup failures caused by paint film.
● No longer need to clean the tank and system flushing. ● Increase jacking oil pressure, more stable bearing temperature.
● Improve the life of oil products, blood additives and system components, such as bearings, valves, seals, etc.
● Great savings can be achieved by avoiding turbine failure and extending the life of oil products. Features:
● Increase system reliability and stability. ● No more shutdowns and startup failures caused by paint film.
● No longer need to clean the tank and system flushing. ● Increase jacking oil pressure, more stable bearing temperature.
● Improve the life of oil products, blood additives and system components, such as bearings, valves, seals, etc.
● Great savings can be achieved by avoiding turbine failure and extending the life of oil products.
Technical Specification
|
Model |
VRP-10 |
|
Flow |
10L/min |
|
Working Pressure |
≤0.5Mpa |
|
Total Power |
5.55KW |
|
Power Supply |
AC380V/50Hz |
|
Overall Dimension |
1466mm×1126mm×1750mm |
|
Net Weight |
500kg |
|
Particle contamination degree(NAS1638)
|
≤6grade |
|
MPC data |
＜15 |
■Above size and weight of this equipment are for reference only, the specific data shall be subject to its physical object.
