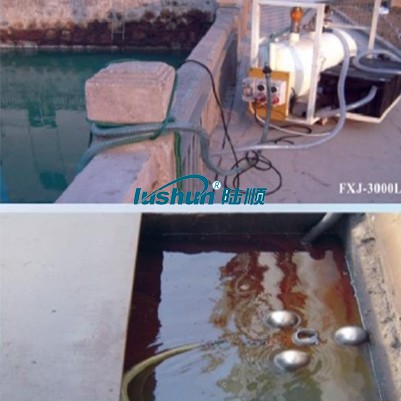

FXJ系列浮油吸收机
产品介绍：
浮油吸收机适用于回收漂浮在水面上多种成分的浮油，如机油、润滑油、煤油、柴油、植物油及其他比重小于水的液体。在机械、铁路、石油、化工、冶金、轻工、食品等部门，具体应用在：含油废水的隔油蓄水池中、各种冷却液的循环蓄水池中、含油废水深度净化前的预处理调节池中、气浮分离池中的浮油收集、其它因比重不同的两液分离工程中。
主要特点：
●快速清理水面浮油；
●结构合理、重量轻、体积小、操作方便；
●该机由水下吸油部份与地面上的二次分离部份组成；
●增加了地面上二次分离装置，提高了回收油质纯度；
●调节浮筒的吃水深度，无论隔油池表面上油层厚薄本机均可回收；
●集油筒采油时油层无扰动，采油效果佳，水分含量低；
●集油筒上端设有滤网，可避免悬浮物堵塞，设备运行可靠。
技术参数：
项目 | LS-FXJ-500L(标准型) | LS-FXJ-3000L(高吸程型) |
吸油流量 | 500L/H | 3000L/H |
储油桶有效容积 | 50L | 250L |
工作电压 | 单相220V/50Hz | 三相 380V/50Hz |
抽油泵功率 KW | 0.37kw | 1.5kw |
标准吸程 | 3米 | 5米 |
吸油管口径 | G3/4’’ | G1” |
排水口口径 | G3/4’’ | G11/4” |
收油直径 m | ≤5 | ≤10 |
浮油回收率% | 98 | 98 |
收油含水量% | ≤3 | ≤3 |
外形尺寸(水上部分) | 48×38×63 | 150×55×145 |
外形尺寸(水下部分) | 25×25 | 45×45 |
VRP Series Varnish Removal Oil Purifier
Application
Used in gas and steam turbine, compressor, to remove dissolved and suspended soft pollutants in oil products, sludge and other harmful substances. Avoid turbine failures and expensive oil changes due to paint film problems. When the film is formed, the loss of production is very high. The initial formation of the film is known as a soft pollutant, caused by hot spots in the system, such as bearings, pumps, and high flow on-line filtration. Recent studies have found that the existence of soft pollutants can be divided into dissolved state and suspended state, by removing these soft oxides can avoid the production of paint film. Once the film forms, it will clog valves, filters and other small links, and the life of the oil will be significantly reduced.
The formation of cleaning film will cause the following adverse consequences: valve adhesion, loss of control, resulting in unit failure or startup failure; Filter plugging, limiting oil flow, resulting in oil temperature rise and wear increase; Heat exchange failure, oil temperature rise; Sandpaper surface, increase component wear; Forming paint on the bearing, limiting flow, increasing wear and temperature; Frequent oil changes and system flushes. When the soft pollutants are dissolved in the oil, typically when the oil temperature is above 40℃, they cannot be removed by ordinary mechanical filtration or electrostatic filtration, and these soft pollutants show natural magnetism. For polar absorption, the cooler metal surface "cold spot", i.e. the valve and cooler. When the temperature of the oil is lowered, the thermal stability of the soft pollutants is less than that of the oil, so they are more likely to bake hard on hot surfaces, such as axial shafts.
VRP paint film cleaner. It achieves revolutionary and efficient removal of soft pollutants (dissolved and suspended) from oil products, including gas and steam turbines and compressors under high temperature operation. The warm oil is pumped from the lowest point at the bottom of the tank to the VRP paint film purifier by the equipment's own transfer pump. After cooling treatment (using the thermal stability of the paint film is worse than that of oil), the paint film, particulate matter and moisture are removed by the filter element with wood fiber as the raw material (no need to use ion-exchange resin filter material, greatly saving the cost of use).
Features:
● Increase system reliability and stability. ● No more shutdowns and startup failures caused by paint film.
● No longer need to clean the tank and system flushing. ● Increase jacking oil pressure, more stable bearing temperature.
● Improve the life of oil products, blood additives and system components, such as bearings, valves, seals, etc.
● Great savings can be achieved by avoiding turbine failure and extending the life of oil products. Features:
● Increase system reliability and stability. ● No more shutdowns and startup failures caused by paint film.
● No longer need to clean the tank and system flushing. ● Increase jacking oil pressure, more stable bearing temperature.
● Improve the life of oil products, blood additives and system components, such as bearings, valves, seals, etc.
● Great savings can be achieved by avoiding turbine failure and extending the life of oil products.
Technical Specification
|
Model |
VRP-10 |
|
Flow |
10L/min |
|
Working Pressure |
≤0.5Mpa |
|
Total Power |
5.55KW |
|
Power Supply |
AC380V/50Hz |
|
Overall Dimension |
1466mm×1126mm×1750mm |
|
Net Weight |
500kg |
|
Particle contamination degree(NAS1638)
|
≤6grade |
|
MPC data |
＜15 |
■Above size and weight of this equipment are for reference only, the specific data shall be subject to its physical object.
