OMB/OMC/OME series
lushun

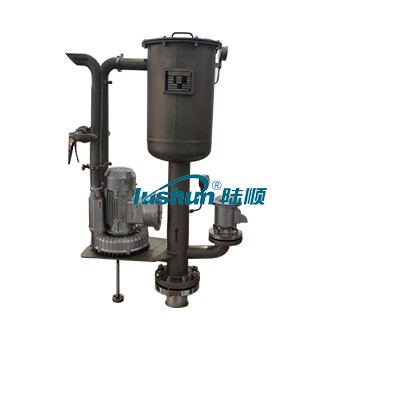

高效油雾分离器
重庆陆顺OMB/OMC/OME 系列高效油雾分离器集过滤与高效分离两种功能于一体，核心采用 “聚结分离(coalescing separation)” 技术去除油烟中的油雾。
●高效聚结分离技术原理
高效聚结分离滤芯由多种材质、特性各不相同的材料组成。目前使用的聚结分离材料全部为德国 产品，可以确保使用效果。不同的材料具有不同的过滤空隙、表面张力特性及亲油/亲水，疏油/ 疏水极性。通过不同材料的配合使用，可以实现过滤、聚结、分离3种目的，从而保证最终的分离 效果。
●过滤
除油烟外，油雾中还含有各类固体颗粒。固体颗粒的存在会影响聚结分离的效果，大大降低滤芯 使用寿命。我们在聚结分离层之前设计高效深层过滤，烟气经深层过滤后才能通过聚结分离滤 芯，从而大大提高了滤芯寿命。
●聚结
根据介质表面张力的不同进行聚结。聚结层由3-4种材料多层缠绕组成，通过特殊设计的气体通道 结构，实现烟气由小油汽到大油滴的结构性变化。陆顺聚结分离滤芯通过量大，聚结能力强，可 以在长时间饱和油雾的严酷环境下使用，具有烧结法，铺毡法等传统方式无法比拟的优点。
●分离
通过聚结滤芯后的烟气将进入滤芯的分离层。 大油滴在气体的带动下向前运动，因亲油/疏油 极性而与分离层发生碰撞聚合，最后由于重力 作用，大油液下沉降到容器底部。
●排出
油烟风机分离出的油液非常清洁，可以直接回 流使用。陆顺油雾分离器按API614 油站P&ID 系统图设计要求，专门预留排油管道，管道深 入最低液位以下。
VRP Series Varnish Removal Oil Purifier
Application
Used in gas and steam turbine, compressor, to remove dissolved and suspended soft pollutants in oil products, sludge and other harmful substances. Avoid turbine failures and expensive oil changes due to paint film problems. When the film is formed, the loss of production is very high. The initial formation of the film is known as a soft pollutant, caused by hot spots in the system, such as bearings, pumps, and high flow on-line filtration. Recent studies have found that the existence of soft pollutants can be divided into dissolved state and suspended state, by removing these soft oxides can avoid the production of paint film. Once the film forms, it will clog valves, filters and other small links, and the life of the oil will be significantly reduced.
The formation of cleaning film will cause the following adverse consequences: valve adhesion, loss of control, resulting in unit failure or startup failure; Filter plugging, limiting oil flow, resulting in oil temperature rise and wear increase; Heat exchange failure, oil temperature rise; Sandpaper surface, increase component wear; Forming paint on the bearing, limiting flow, increasing wear and temperature; Frequent oil changes and system flushes. When the soft pollutants are dissolved in the oil, typically when the oil temperature is above 40℃, they cannot be removed by ordinary mechanical filtration or electrostatic filtration, and these soft pollutants show natural magnetism. For polar absorption, the cooler metal surface "cold spot", i.e. the valve and cooler. When the temperature of the oil is lowered, the thermal stability of the soft pollutants is less than that of the oil, so they are more likely to bake hard on hot surfaces, such as axial shafts.
VRP paint film cleaner. It achieves revolutionary and efficient removal of soft pollutants (dissolved and suspended) from oil products, including gas and steam turbines and compressors under high temperature operation. The warm oil is pumped from the lowest point at the bottom of the tank to the VRP paint film purifier by the equipment's own transfer pump. After cooling treatment (using the thermal stability of the paint film is worse than that of oil), the paint film, particulate matter and moisture are removed by the filter element with wood fiber as the raw material (no need to use ion-exchange resin filter material, greatly saving the cost of use).
Features:
● Increase system reliability and stability. ● No more shutdowns and startup failures caused by paint film.
● No longer need to clean the tank and system flushing. ● Increase jacking oil pressure, more stable bearing temperature.
● Improve the life of oil products, blood additives and system components, such as bearings, valves, seals, etc.
● Great savings can be achieved by avoiding turbine failure and extending the life of oil products. Features:
● Increase system reliability and stability. ● No more shutdowns and startup failures caused by paint film.
● No longer need to clean the tank and system flushing. ● Increase jacking oil pressure, more stable bearing temperature.
● Improve the life of oil products, blood additives and system components, such as bearings, valves, seals, etc.
● Great savings can be achieved by avoiding turbine failure and extending the life of oil products.
Technical Specification
|
Model |
VRP-10 |
|
Flow |
10L/min |
|
Working Pressure |
≤0.5Mpa |
|
Total Power |
5.55KW |
|
Power Supply |
AC380V/50Hz |
|
Overall Dimension |
1466mm×1126mm×1750mm |
|
Net Weight |
500kg |
|
Particle contamination degree(NAS1638)
|
≤6grade |
|
MPC data |
＜15 |
■Above size and weight of this equipment are for reference only, the specific data shall be subject to its physical object.
